2 Way Switch Wiring
Learn how to wire a 2-way switch to control lights from two locations. Use our guide and wiring diagram for clear, safe, and simple electrical connections
Dual control switch diagram
Connecting a 2-way switch is a very simple but vital electrical process which enables a light to be switched with one location, and another one. Perfect solution to staircases and hallways, this arrangement consists of 2-SPDT switches and traveler wires to alternate the state of the light. Be it a faulty switch replacement or wiring new switch, you must understand the 2-way switch wiring diagram as that is how you will be safe and your switch will work accordingly.
2-way switch Formula & Table Summary
| Switch A | Switch B | Light Status |
|---|---|---|
| UP | UP | ON |
| UP | DOWN | OFF |
| DOWN | UP | OFF |
| DOWN | DOWN | ON |

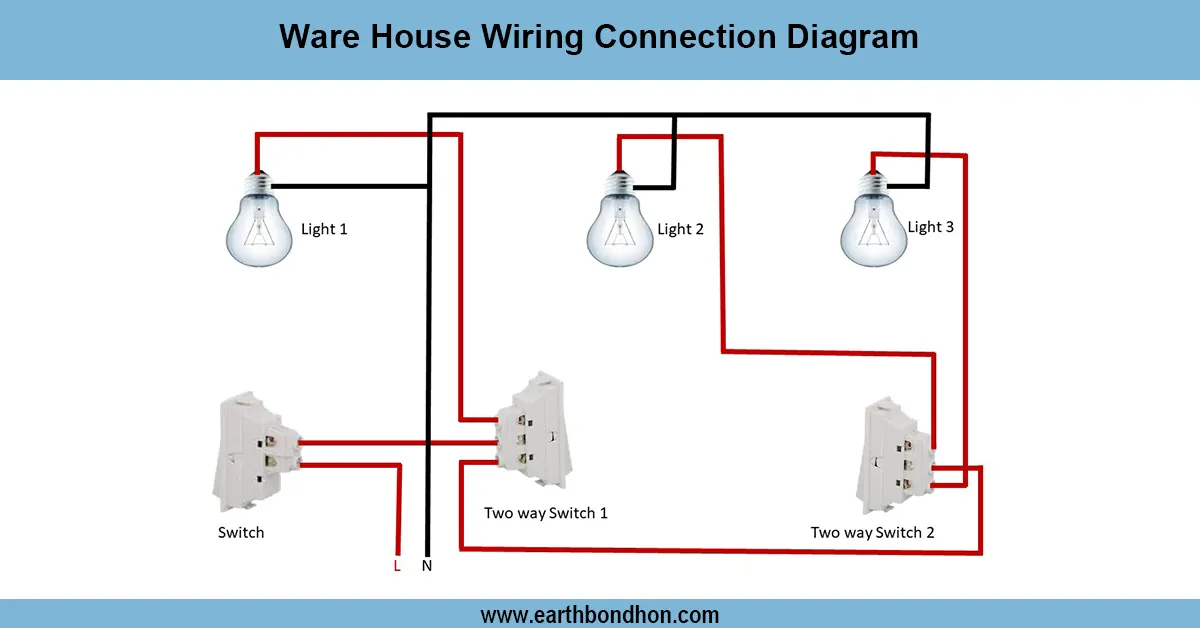

two-way electrical switch connection
Wiring scheme of 2-way switches gives you the ability to manage one light using two positions. It is usually employed in stair cases, lengthy hallways and huge rooms with many doors in them. Two SPDT (single pole double throw) switches are placed in the system and traveler wires are used to connect them. It allows switching on or turning off the light using either of the two switches. The 2-way switch method of wiring is one of the key concepts, that has to be learnt to have safe and feasible electrical works at home. These are the two most common wiring types, Standard 2-way and Alternative 2-way using junction box. In our in-depth tutorial, there are diagrams, color codes of wiring and easy-to-learn examples. We also made this tutorial easy to understand by both DIYers, electricians, and students.
Sample Data Table: Wiring Inputs & Outputs
| Component | Wire Connection | Description |
|---|---|---|
| Switch 1 (SPDT) | Common to Live | Power source |
| Switch 1 | Traveler 1 & 2 | Connects to Switch 2 travelers |
| Switch 2 (SPDT) | Traveler 1 & 2 | Receives travelers from Switch 1 |
| Switch 2 | Common to Light | Final connection to the light |
| Light | Neutral to power | Completes the circuit with neutral |
Frequently Asked Questions - 2 Way Switch Wiring:
What is a 2-way switch?
It allows control of one light from two locations using two switches.
Where is a 2-way switch commonly used?
In staircases, hallways, or rooms with two entrances.
What type of switch is used?
SPDT (Single Pole Double Throw) switches.
What are traveler wires?
Wires that connect the two switches, allowing the signal to toggle.
Is neutral wire required?
Yes, to complete the circuit to the light.
Can I install a 2-way switch myself?
Yes, if you follow safety rules and diagrams carefully.
What color wires are used?
Typically red and black for travelers, white for neutral.
Does polarity matter in switch wiring?
Yes, correct wiring ensures safe operation.
Can this work with LED lights?
Yes, as long as wiring is done correctly.
Is a junction box needed?
Not always, but it depends on the wiring method used.
